Knauf PERMAROCK® Construction
Render Systems for Knauf PERMAROCK® Construction
Overview
One unique wall system, built with the assured German quality of two brands - Sto a world leader in the manufacturing of high-quality exterior renders and coating systems have partnered with Knauf to provide the perfect reinforcing render for Knauf PERMAROCK®, delivering one complete rendered facade solution.
World renowned StoArmat Render Systems are cement-free, breathable, impact-resistant, highly flexible, with a crack resistance six times higher than that of standard cement-based plasters and finished in a wide variety of different Stolit coloured finishing renders, ensuring maximum longevity with an individual finish for all Knauf PERMAROCK® construction.
StoArmat Render System
StoArmat is a BRANZ appraised exterior render system that provides the optimal protection and durability for Knauf Permarock® construction. Before the system can be applied the surface is sealed and all joints are then flushed using StoArmat render embedded with Sto Jointing mesh for reinforcement. StoArmat render and glass fibre mesh is then applied over the full substrate, providing engineered reinforcement to reliably dissipate tensile, seismic and shear stress. Finished with perfectly interlocking components: Stolit fibre-reinforced coloured finishing render plus StoColor; creating a 4mm weather tight reinforcement system for reliability and protection that surpasses the facade durability requirements.
Installations are carried out by a Sto Registered Licensed Building Practitioner with the added protection of a StoArmat 15 Year Warranty and StoService Assurance, guaranteeing building code compliant materials are used and application meets building code standards, including a service plan for long-term security.

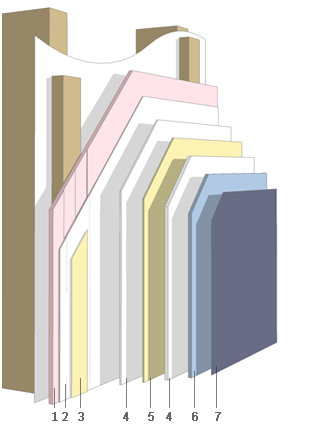

StoArmat Render System
Click on each of the layers below to view the components of the system.
01
Substrate:
Knauf Permarock®
02
Primer: Sto Putzgrund
Water based primer in a pail, containing an organic binder and good adhesion properties.
03
Joint treatment:
Sto RFP / Sto Jointing Mesh
Easy to install, meeting the highest requirements for crack, stress and alkalinity resistance.
04
Reinforcement Render: StoArmat Render
An organic, weather resistant, cement-free and breathable, high-impact render, with a crack resistance six times higher than that of standard cement-based plasters.
05
Plus: Sto Glass Fibre Mesh 4/7mm
Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.
06
Finishing Render: Stolit Renders
Organically bound, highly weather resistant, strong, hard-wearing, impact-resistant, pre-coloured finishing renders. (No cement)
Stolit K Range
Stolit MP & MP Natural
Stolit Milano
07
Coating:
StoColor coating based on IQ Net Technology for functional facades.
StoColor Lotusan
StoColor X-black
StoColor Maxicryl
StoColor Lastic
BRANZ Appraised
StoArmat 15 Year Warranty
with StoService Assurance
Finishes
Stolit: Coloured Finishing Renders
Stolit organic finishing renders are manufactured in Germany incorporating the latest technology; certified globally and successfully applied to rendered substrates in every climatic zone for over 50 years.
The Stolit range provides the perfect combination of properties: durable, strong, hard-wearing, impact-resistant, malleable, weather-resistant, colour-stable and highly resistant to microorganisms. In addition, its vapour permeability allows your building to breathe while still repelling water.
Coloured Self-Gauging Float Finish Renders: |
|||
Stolit K 1.0mm |
Stolit K 1.5mm |
Stolit K 2.0mm |
Stolit K 3.0mm |
Coloured Fine Float, Sponge, or Light Adobe Finish Renders: |
Stolit MP |
Stolit MP Natural |
Stolit Milano |
Facade Paints
The StoColor finish, a serviceable coating embodying intelligent technology for a range of surface functions to compliment the architectural structure and design. The StoColor System, with 800 shades or matched to any colour using the Sto Spectrometer, provides a clear framework and systematic approach to colour based on integrated layers, combining texture and colour for aesthetic appeal.
Product |
StoColor Lotusan |
StoColor X-black |
StoColor Maxicryl |
StoColor Lastic
|
Download a Data Sheet:
Technical Datal Sheet (TDS) / Material Saftey Data Sheet (MSDS) / Sustainability Data Sheet (SDS)
Primers / Sealers:
Reinforcement Mesh:
Reinforcement Render / Base Render:
Finishing Renders:
Coatings:
Download a Technical Specification
Please contact sales@stoaustralia.com.au to receive an editable specification or copy of a BRANZ appraisal
Download a Detail Set
For Sto details or detail sets regarding Knauf Permarock® Solutions please contact us.
Disclaimer: These drawings are issued as a guideline. The sequence work covers various building components, each trade is responsible to ensure their elements are fully installed, including all waterproofing / sealant / flashings as is applicable.
Last updated March 2021
