AFS LOGICWALL®  Construction


Solutions for AFS LOGICWALL® Construction



Overview

Quick to install and easy to maintain, AFS LOGICWALL has a proven record of providing economical facade solutions with design flexibility, that meets todays requirements for architects and builds. The StoArmat Render System is fracture, impact resistant and engineered to provide optimal protection and finish for AFS LOGICWALL construction, to compliment, protect and enhance this building element.








Brochure

Brochure
AFS LOGICWALL® - StoArmat Render System
PDF








StoArmat Render System

Before render system application, AFS LOGICWALL is sealed and all joints are flushed using StoArmat render embedded with Sto Jointing Mesh for reinforcement. StoArmat render and glass fibre mesh is then applied over the full substrate , providing engineered reinforcement to reliably dissipate tensile, seismic and shear stress. Finished with perfectly interlocking components: Stolit fibre-reinforced coloured finishing render plus StoColor; creating a 4mm weather tight reinforcement system for reliability and protection that surpasses the facade durability requirements.



Installations are carried out by a registered Sto Contractor with the added protection of a StoArmat 15 or 20 Year Warranty with StoService Assurance guaranteeing building code compliant materials are used and application meets building code standards, including a service plan for long-term security.

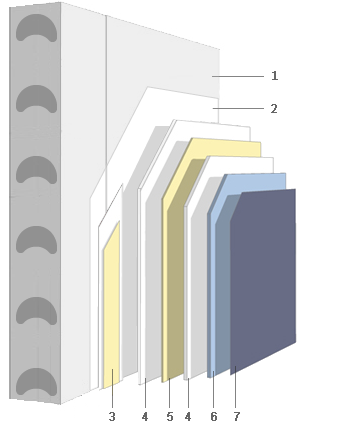

StoArmat Render System
Click on each of the layers below to view the components of the system.





Component Builder afs_armat_system_170 afs_armat_system_141 afs_armat_system_160 afs_armat_system_150 afs_armat_system_140 afs_armat_system_130 afs_armat_system_120 afs_armat_system_110



01

Substrate: AFS LOGICWALL®

AFS construction system.



02

Primer: Sto Putzgrund

Water based primer in a pail, containing an organic binder and good adhesion properties.



bucket



03

Joint Treatment:
StoArmat / Sto Jointing Mesh

Easy to install, meeting the highest requirements for crack, stress and alkalinity resistance.



bucket



04

Reinforcement Render: StoArmat Render

An organic, weather resistant, cement-free and breathable, high-impact render, with a crack resistance six times higher than that of standard cement-based plasters.



sto bucket    stoarmat bend test



05

Plus: Sto Glass Fibre Mesh 4/7mm

Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.



mesh



06

Finishing Render: Stolit Renders

Organically bound, highly weather resistant, strong, hard-wearing, impact-resistant, pre-coloured finishing renders. (No cement)



Stolit K Range

Stolit MP & MP Natural

Stolit Milano



plaster bucket



07

Coating:

StoColor coating based on IQ Net Technology for functional facades.



StoColor Lotusan

StoColor X-black

StoColor Maxicryl

StoColor Lastic



sto-bucket



branz appraisal

Based on BRANZ Appraisal 515

sto warranty

StoArmat 15 or 20 Year Warranty with StoService Assurance












Finishes

Stolit: Coloured Finishing Renders

Stolit organic finishing renders are manufactured in Germany incorporating the latest technology; certified globally and successfully applied to rendered substrates in every climatic zone for over 50 years.



The Stolit range provides the perfect combination of properties: durable, strong, hard-wearing, impact-resistant, malleable, weather-resistant, colour-stable and highly resistant to microorganisms. In addition, its vapour permeability allows your building to breathe while still repelling water.





Coloured Self-Gauging Float Finish Renders:

StolitK 1.0mm StolitK 1.5mm StolitK 2.0mm StolitK 3.0mm

Stolit K 1.0mm

Stolit K 1.5mm

Stolit K 2.0mm

Stolit K 3.0mm



Coloured Fine Float, Sponge, or Light Adobe Finish Renders:

StolitK MP StolitK MP Natural Stolit Milano

Stolit MP

Stolit MP Natural

Stolit Milano












Facade Paints

The StoColor finish, a serviceable coating embodying intelligent technology for a range of surface functions to compliment the architectural structure and design. The StoColor System, with 800 shades or matched to any colour using the Sto Spectrometer, provides a clear framework and systematic approach to colour based on integrated layers, combining texture and colour for aesthetic appeal.





Product

StoColor Lotusan
The tried-and-tested facade paint with patented Lotus-Effect® technology for facades that stay clean for longer.

StoColor X-black
Strong colours for cool facades. Matt finish facade paint for dark coloured facades.

StoColor Maxicryl
Acrylic facade paint with high covering power for a natural look.

StoColor Lastic
Elastomeric durable facade paint.



Sto Paint








Data Sheets

sto detail expand



Download a Data Sheet:

Technical Datal Sheet (TDS) / Material Saftey Data Sheet (MSDS) / Sustainability Data Sheet (SDS)



Primers / Sealers:



DS
StoFlexyl
PDF PDF PDF
DS
StoPlex W
PDF PDF
DS
Sto-Putzgrund
PDF PDF PDF



Reinforcement Mesh:



DS
Sto Glass Fibre Mesh 4mm
PDF
DS
Sto Glass Fibre Mesh 7mm
PDF



Reinforcement Render / Base Render:



DS
StoArmat Render
PDF PDF PDF



Finishing Renders:



DS
Stolit K 1.0mm
PDF PDF PDF
DS
Stolit K 1.5mm
PDF PDF PDF
DS
Stolit K 2.0mm
PDF PDF PDF
DS
Stolit K 3.0mm
PDF PDF PDF
DS
Stolit MP & MP Natural
PDF PDF PDF
DS
Stolit Milano
PDF PDF



Coatings:



DS
StoColor X-black
PDF PDF
DS
StoColor Lotusan
PDF PDF PDF
DS
StoColor Maxicryl
PDF PDF PDF
DS
StoColor Lastic Satin
PDF PDF PDF




Specifications & BRANZ Appraisal

sto detail expand



Download a Technical Specification

Please contact sales@stoaustralia.com.au to receive an editable specification or copy of a BRANZ appraisal




CAD or PDF Details

sto detail expand



Download a Detail Set



For an AFS LOGICWALL detail please refer to the AFS website here.
For StoArmat Render System details please contact us.







Disclaimer: These drawings have been issued as a guideline. The sequence work covers various building components, each trade is responsible to ensure their elements are fully installed, including all waterproofing / sealant / flashings as is applicable.
