EasyLap Panel Construction


Render Solutions for James Hardie™ EasyLap™ Panel



Overview

Sto offers a simple, cost-effective and durable finishing render system to complement James Hardie EasyLap Panel. Stolit Coloured Finishing Renders open up a wide range of design options, from a classic stippled or adobe render finish, to the natural surface look of concrete or precast panel.






Brochure

Brochure
The perfect finish
PDF










Stolit Milano Application

Click on the video below to watch how Stolit Milano, a pre-mixed coloured finishing render, is applied over EasyLap Panel to mirror the surface look of concrete panel.





Stolit Milano over James Hardie Easylap Panel

System Advantages

  • Weather-tight.

  • Superior resistance to cracks and mechanical stress.

  • Wide range of finishes possible.

  • Outstanding colour retention and product stability.

  • Optimum surface adhesion.

  • Cost-effective and long-lasting.

  • Simple application.

  • Suitable for interior linings for a seamless transition.

  • Applied by a registered Sto LBP Contractor.

  • Sto 10 Year Warranty with StoService Assurance.












Stolit Finish Render System

Application of Stolit Coloured Finishing Renders are simple and cost-effective due to the shiplap vertical joints of Easylap Panel construction. The panels are primed and rendered in the selected Stolit Coloured Finishing Render with a StoClear coating or StoColor facade paint for added protection. The system is applied by a registered Sto LBP (Licenced Builder Practitioner) Contractor and comes with a Sto 10 Year Warranty and maintenance schedule, protecting you and your property investment.

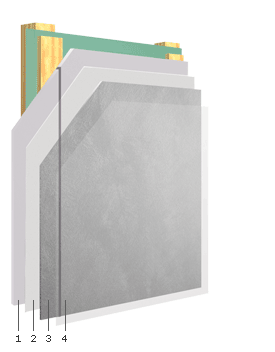

Stolit Finishing Render System
Click on each of the layers below to view the components of the system.







Component Builder StoLit-Finish_3 StoLit-Finish_22 StoLit-Finish_4 StoLit-Finish_5



01

Substrate:

James Hardie EasyLap Panel.





02

Primer: Sto Putzgrund

Water based primer in a pail, containing an organic binder and good adhesion properties.







03

Finishing Render: Stolit Renders

Organically bound, highly weather resistant, strong, hard-wearing, impact-resistant, pre-coloured finishing renders. (No cement)



Stolit K Range

Stolit MP & MP Natural

Stolit Milano



04

Coating:

StoColor coating based on IQ Net Technology for functional facades.



StoColor Lotusan

StoColor X-black

StoColor Maxicryl

StoColor Lastic





sto warranty

Sto 10 year Warranty with StoService Assurance












Finishes

Stolit: Coloured Finishing Renders

Stolit organic finishing renders are manufactured in Germany incorporating the latest technology; certified globally and successfully applied to rendered substrates in every climatic zone for over 50 years.



The Stolit range provides the perfect combination of properties: durable, strong, hard-wearing, impact-resistant, malleable, weather-resistant, colour-stable and highly resistant to microorganisms. In addition, its vapour permeability allows your building to breathe while still repelling water.





Coloured Self-Gauging Float Finish Renders:

StolitK 1.0mm StolitK 1.5mm StolitK 2.0mm StolitK 3.0mm

Stolit K 1.0mm

Stolit K 1.5mm

Stolit K 2.0mm

Stolit K 3.0mm



Coloured Fine Float, Sponge, or Light Adobe Finish Renders:

StolitK MP StolitK MP Natural Stolit Milano

Stolit MP

Stolit MP Natural

Stolit Milano












Facade Paints

The StoColor finish, a serviceable coating embodying intelligent technology for a range of surface functions to compliment the architectural structure and design. The StoColor System, with 800 shades or matched to any colour using the Sto Spectrometer, provides a clear framework and systematic approach to colour based on integrated layers, combining texture and colour for aesthetic appeal.





Product

StoColor Lotusan
The tried-and-tested facade paint with patented Lotus-Effect® technology for facades that stay clean for longer.

StoColor X-black
Strong colours for cool facades. Matt finish facade paint for dark coloured facades.

StoColor Maxicryl
Acrylic facade paint with high covering power for a natural look.

StoColor Lastic
Elastomeric durable facade paint.



Sto Paint








Data Sheets

sto detail expand

Specification

sto detail expand

CAD or PDF details

sto detail expand




Disclaimer: These drawings have been issued as a guideline. The sequence work covers various building components, each trade is responsible to ensure their elements are fully installed, including all waterproofing / sealant / flashings as is applicable.

Last updated March 2021
