Sto Render Systems for Brick Construction
Mankinds original use of fire and clay to create terracotta products has lead to the development of a diverse range of bricks and construction techniques. Today bricks are still produced in the original manner or manufactured by industrial kilns using the latest technology and chemical additives to enhance the quality and properties. Researching the vigorous demands, Sto has developed a comprehensive range of facade renders and solutions to enable specifiers to select an individual style to meet the project requirements, providing optimal protection and finish with warranty for all brick construction.

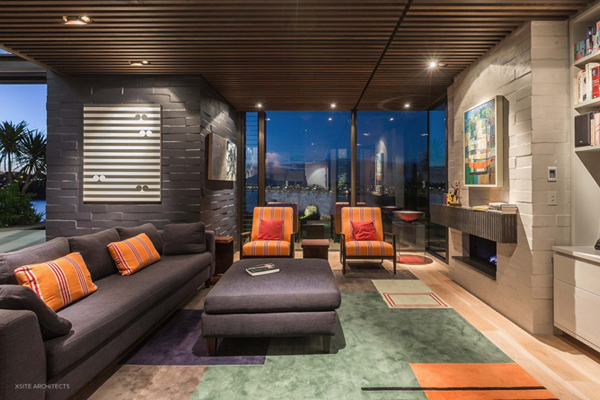

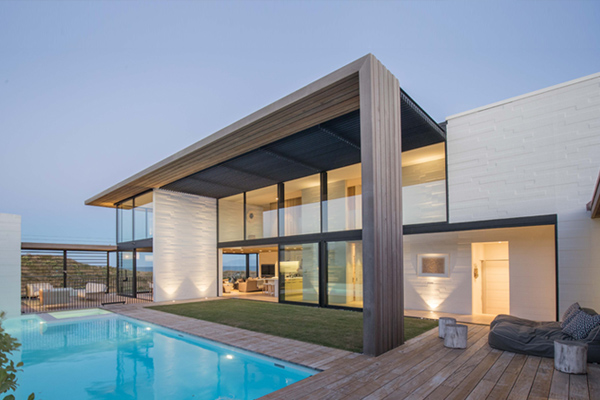

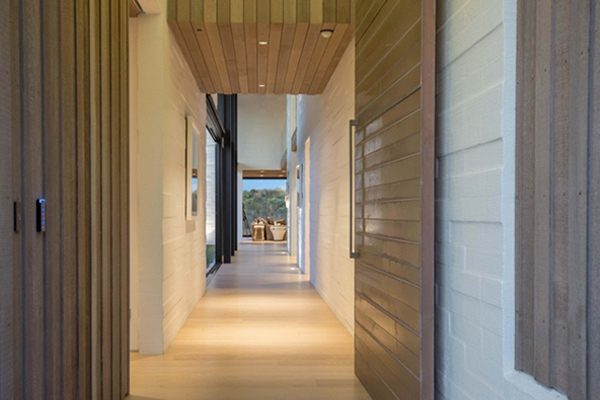

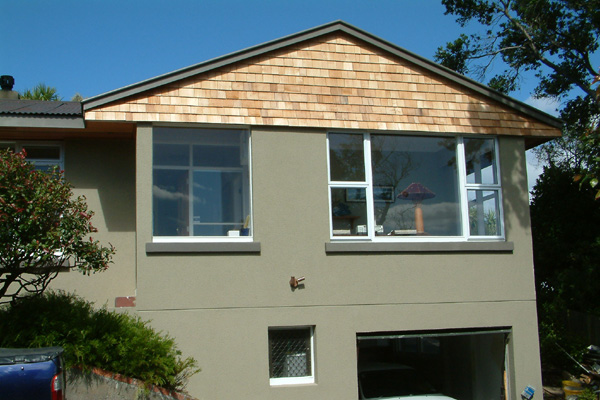

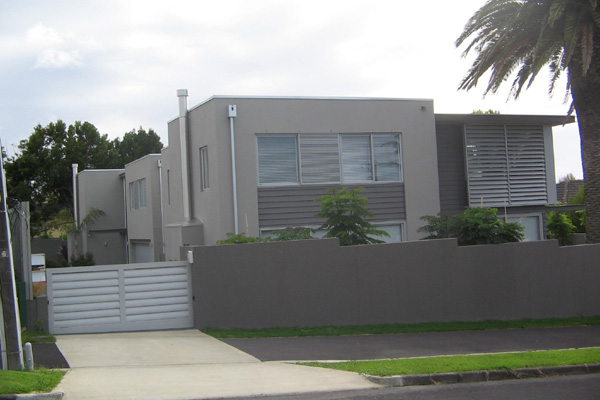

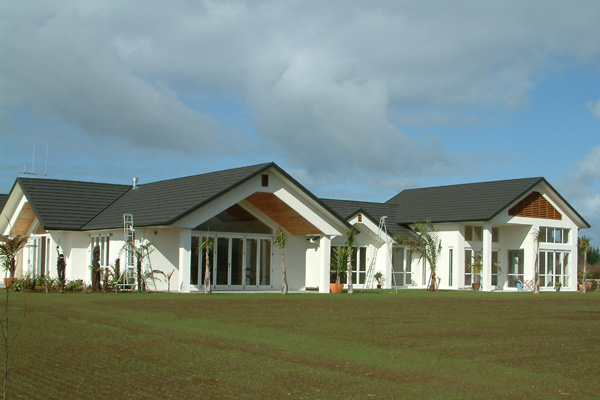

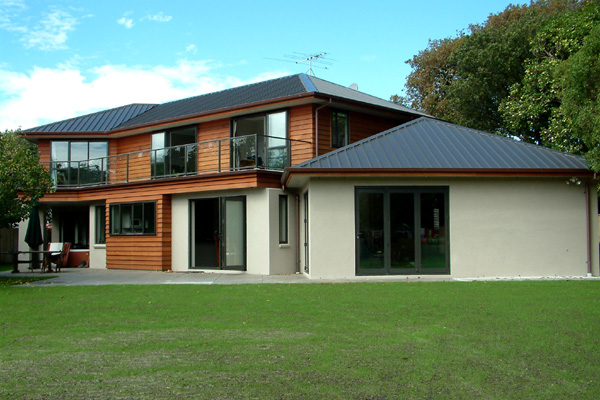

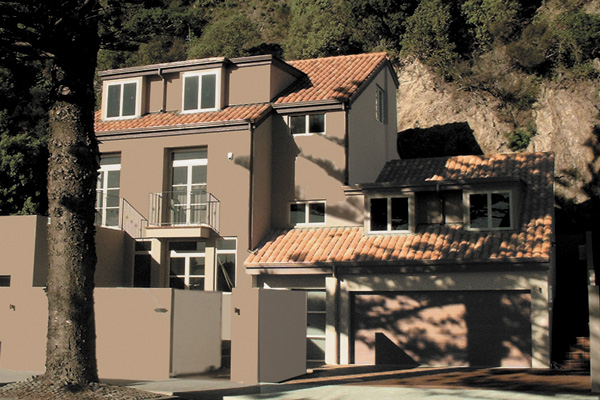

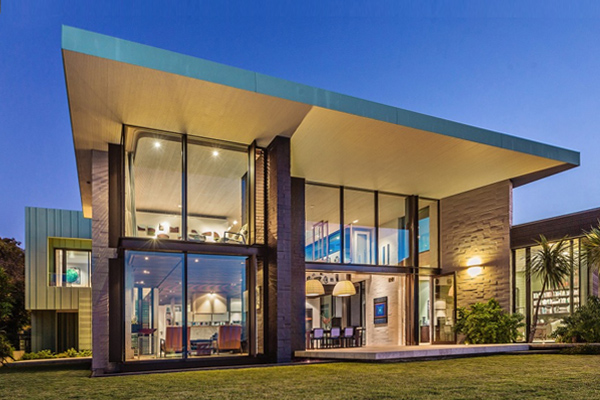

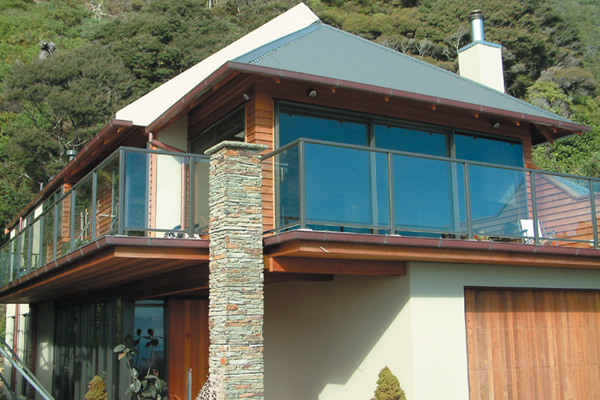

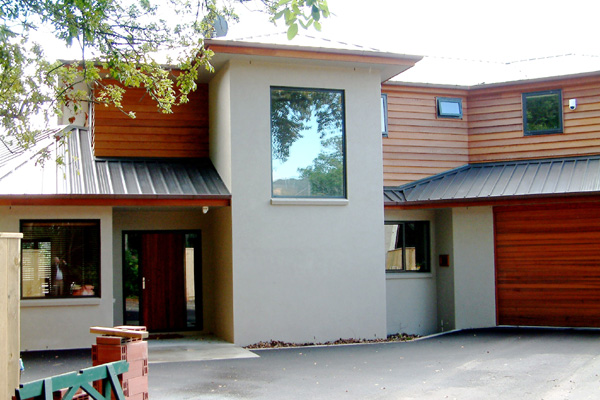

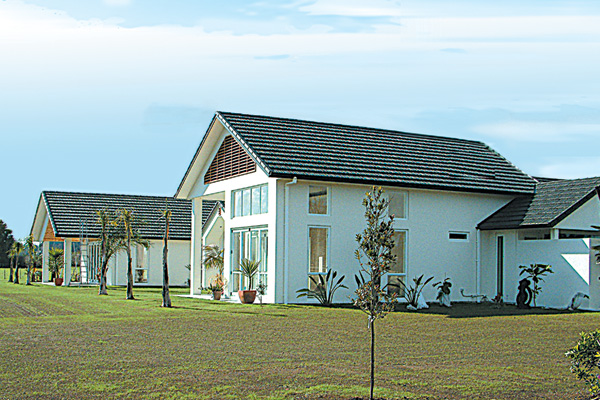

Click here for additional photos. Click on a thumbnail for a larger image.
Click here to hide images.
StoArmat Miral Render System
A BRANZ appraised high performance system to provide exceptional crack resistance and weather protection. The application includes a basecoat render to straighten any irregularities. Followed by StoArmat render and glass fibre mesh, providing engineered reinforcement to reliably dissipate tensile, seismic and shear stress. Finished with perfectly interlocking components: Stolit fibre-reinforced coloured finishing render plus StoColor; creating a 4mm weather tight reinforcement system for reliability and protection that surpasses the facade durability requirements.
Installations are carried out by a Sto Registered Licensed Building Practitioner with the added protection of a StoArmat 15 or 20 Year Warranty and StoService Assurance, guaranteeing building code compliant materials are used and application meets building code standards, including a service plan for long-term security.

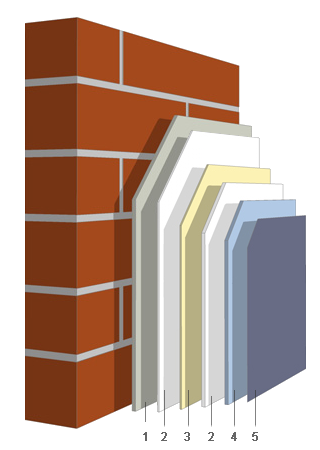

StoArmat Miral Render System
Click on each of the layers below to view the components of the system.
Basecoat: StoLevell Novo / LevelLite / Multiscreed Mineral Render
White mineral render with excellent adhesion including build properties, water retention agents and machine application properties.
Reinforcement Render: StoArmat Render
An organic, weather resistant, cement-free and breathable, high-impact render, with a crack resistance six times higher than that of standard cement-based plasters.
Plus: Sto Glass Fibre Mesh 4/7mm
Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.
Finishing Render: Stolit Renders
Organically bound, highly weather resistant, strong, hard-wearing, impact-resistant, pre-coloured finishing renders. (No cement)
Stolit K Range
Stolit MP & MP Natural
StoColor coating based on IQ Net Technology for functional facades.
BRANZ Appraisal 515
StoArmat 15 or 20 Year Warranty with StoService Assurance
Stolit: Coloured Finishing Renders
Stolit organic finishing renders are manufactured in Germany incorporating the latest technology; certified globally and successfully applied to rendered substrates in every climatic zone for over 50 years.
The Stolit range provides the perfect combination of properties: durable, strong, hard-wearing, impact-resistant, malleable, weather-resistant, colour-stable and highly resistant to microorganisms. In addition, its vapour permeability allows your building to breathe while still repelling water.
Coloured Self-Gauging Float Finish Renders:
Stolit K 1.0mm
Stolit K 1.5mm
Stolit K 2.0mm
Stolit K 3.0mm
Coloured Fine Float, Sponge, or Light Adobe Finish Renders:
Stolit MP Natural
The StoColor finish, a serviceable coating embodying intelligent technology for a range of surface functions to compliment the architectural structure and design. The StoColor System, with 800 shades or matched to any colour using the Sto Spectrometer, provides a clear framework and systematic approach to colour based on integrated layers, combining texture and colour for aesthetic appeal.
Download a Data Sheet:
Technical Data Sheet (TDS) / Material Safety Data Sheet (MSDS) / Sustainability Data Sheet (SDS)
Primers / Sealers:
Reinforcement Render / Base Render:
Specifications & BRANZ Appraisal
Download a Technical Specification
Please contact firstname.lastname@example.org to receive an editable specification or copy of a BRANZ appraisal
CAD or PDF Details
Download a Detail Set
For Sto Render Brick details or detail sets please contact us.
Disclaimer: These drawings have been issued as a guideline. The sequence work covers various building components, each trade is responsible to ensure their elements are fully installed, including all waterproofing / sealant / flashings as is applicable.
